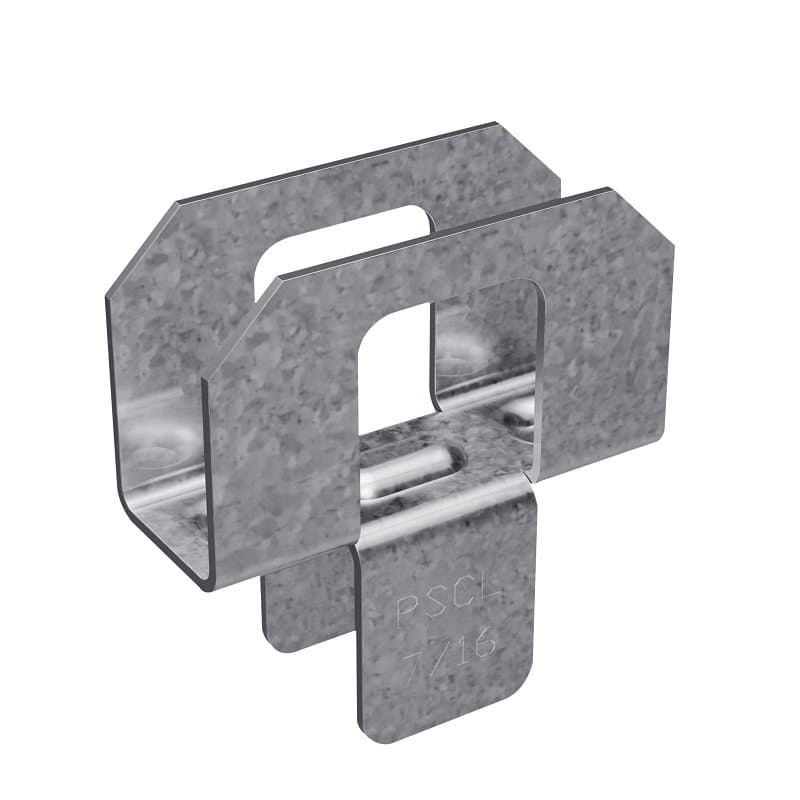

Simpson Strong-Tie PSCL 7/16 Panel Sheathing Clip, 20 ga Thick Material, Steel, Galvanized

The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure. Features: - Quick installation, no nails required - Provides the 1/8 in space between plywood panels as recommended by the American Plywood Association - Use the same size sheathing clip as the panel thickness - Galvanized (G90) for extra corrosion resistance - Provides a secure environment for sheathing - Support for shrinkage and expansion over time - Maximum spans may be reduced for low slopes or high uniform loads - For 7/16 in panel thickness
